Description
Safety is our top priority. Meijia sectional doors are optionally equipped with spring-break protection devices, cable-break anti-drop hardware, and advanced photo-eye sensors. This comprehensive multi-layer safety system instantly stops and reverses the door upon detecting any obstruction, providing ultimate protection for vehicles, goods, and personnel.
Product Highlights
Intelligent, Intelligent, Low-Noise Drive Systems
Comprehensive Multi-Layer Safety Protection
Heavy-Duty Galvanized Hardware & Tracks
High-Performance Industrial Torsion Springs
Accessory Specifications
| Model | Input Voltage | Power Input | Max Pull Force | Light Type | Lighting Duration | Encoding Type | Radio Frequency | Operating Temp. | Relative Humidity | Recommended Door Size | Remote Capacity |
| Pro Line 1000F | 110-240V AC, 50/60Hz | 245W | 1000N | LED | 3 min | Rolling Code | 433.92 MHz (as required) | -20~40°C | <90% | 14 m² | 20 |
| Pro Line 1200F | 110-240V AC, 50/60Hz | 260W | 1200N | LED | 3 min | Rolling Code | 433.92 MHz (as required) | -20~40°C | <90% | 16 m² | 20 |
| Model | Motor Image | Rated Voltage | Rated Frequency | Rated Power | Max Pull Force | Max Speed | Optional Accessories |
| 350G |  | 220V | 50/60Hz | 150W | 1100N | 110 mm/s | Infrared sensor, Password lock, Wireless wall switch, Mobile phone door opening system, Remote control |
| 390G |  | 220V | 50/60Hz | 180W | 1200N | 110 mm/s | Infrared sensor, Motor guide rail |
| Model | Rated Output Torque | Rated Output Speed | Motor Power | Input Current | Output Bore | Net Weight | Self-locking Method |
| C40 | 40 Nm | 30 rpm | 0.45 kW | 4 A | 25.4 mm | 11 kg | Gearbox self-locking |
| C60 | 60 Nm | 30 rpm | 0.65 kW | 6 A | 25.4 mm | 12 kg | Gearbox self-locking |
| C90 | 90 Nm | 30 rpm | 1.1 kW | 10 A | 25.4 / 32 mm | 14.5 kg | Gearbox self-locking |
| C120 | 120 Nm | 30 rpm | 1.5 kW | 13 A | 25.4 / 32 mm | 15 kg | Gearbox self-locking |
| General Parameters | Specification |
| Input Voltage | Single-phase AC 200–240 V |
| Input Frequency | 50 / 60 Hz |
| Operating Temperature | -20 ~ +50 °C |
| Storage Temperature | -20 ~ +50 °C |
| Ambient Humidity | 30 % – 85 % (no condensation) |
| Protection Rating | IP54 |
| Limit Mode | Absolute encoder |
| Manual Release | Hand-pull chain |
| Model | Standard Garage Door Area | Solid/Industrial Door Area | Speed | Duty Cycle | Motor Voltage / Power | Motor Power Supply | Protection Rating |
| S12/600 | 8 m² (with 1.2/2.0 mm rail) | — | 160 mm/s | 30% | 24V DC / 60W | 110 VA | IP40 |
| S12/1000 | 15 m² | 8 m² | 140 mm/s | 30% | 24V DC / 80W | 150 VA | IP40 |
| S12/1500 | 21 m² | 15 m² | 140 mm/s | 50% | 24V DC / 120W | 200 VA | IP40 |

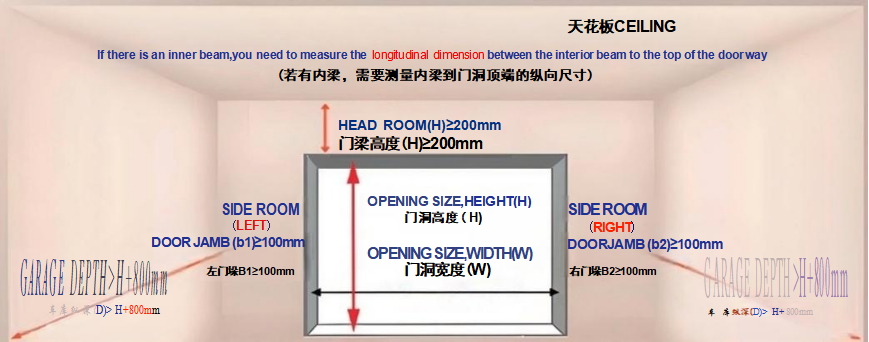

Measurement
